E-ink Display 7.3 inch 800x480
OK-EL073TF1
OVERIEW
SPECIFICATION
DOWNLOAD

Product description:


OK-EL073TF1 is a 7.3-inch full color E-ink display,   800x480 resolution, comparing with Acep technology, this product has better color performance and faster refresh speed, will become the mainstream prodcuts in near future,   making it an ideal choice for digital photo frames and confrence table cards.

This product is equipped with the ESP32-WROOM-S3-1-N16R8 Bluetooth/WIFI chip motherboard, which is convenient for programmers to debug EPD driver code, it allows the directly image transmissions from TF card or Android APK to the screen, to show the product effect   simply, quickly and intuitively.


PART NUMBER

OK-EL073TF1

TYPE

Dot Matrix

SIZE

7.3 inch

IC

/

RESOLUTION

800x480

PPI

127

OUTLINE SIZE(mm)

170.2x111.2x0.91

ACTIVE SIZE(mm)

160x96

PIXEL PITCH(mm)

0.2x0.2

OPERATING TEMP.

0℃~50℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

50 Pin FPC

COLOR

Full color( Spectra 6)

INTERFACE

SPI

FULL REFRESH TIME(s)

17

TYPICAL POWER(mW)

TBD

STANDBY POWER (mW)

TBD

FRONT LIGHT, TOUCH SCREEN

Optional

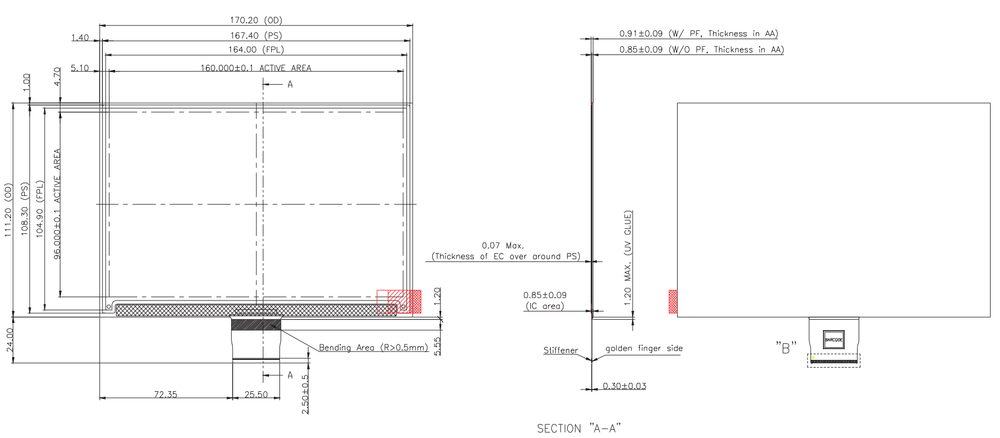

Structural Drawings.png
125.84KBDownload
