E-ink Display 25.3 inch 3200x1800
OK-AC253TT1
OVERIEW
SPECIFICATION
DOWNLOAD

Product description:


OK-AC253TT1 is a 25.3-inch large size E-ink display, it has parallel interface, 51 pins, 3200x1800 high resolution, can display images of 2-16 gray levels (1-4 bits), depending on the display controller and the relevant waveform files to be used.                                                                                                                                          This product has better color performance than Kaleido technology, it is an ideal choice for supermarket display boards, museum display boards, industrial applications and other related products.

PART NUMBER

OK-AC253TT1

TYPE

Dot Matrix

SIZE

25.3 inch

IC

/

RESOLUTION

3200x1800

PPI

\

OUTLINE SIZE(mm)

576.5x333x0.93

ACTIVE SIZE(mm)

560x315

PIXEL PITCH(mm)

0.175x0.175

OPERATING TEMP.

15℃~35℃

STORAGE TEMP.

-25℃~70℃

CONNECTOR

51 Pin FPC

COLOR

Full color( Spectra 6)

INTERFACE

mini-LVDS

FULL REFRESH TIME(s)

25

TYPICAL POWER(mW)

TBD

STANDBY POWER (mW)

TBD

FRONT LIGHT, TOUCH SCREEN

Optional

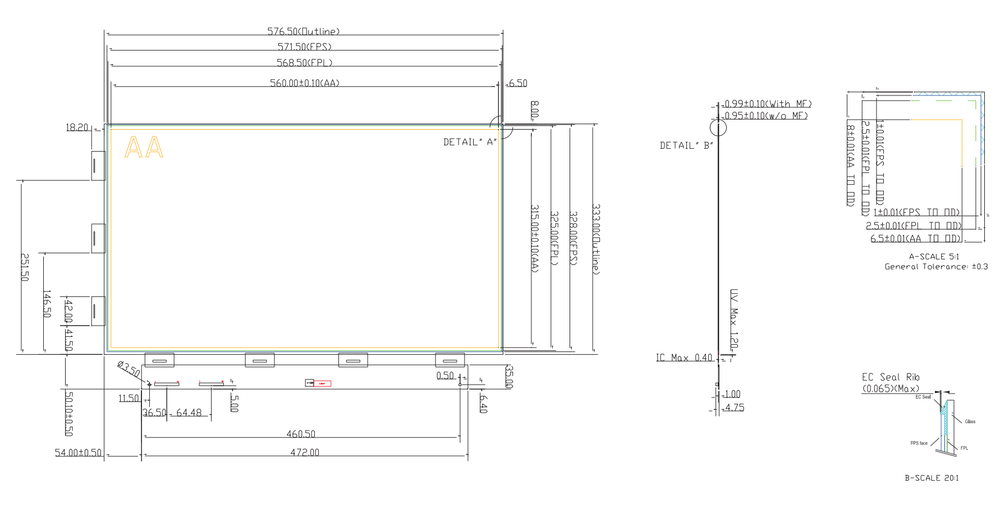

Structural Drawings.png
106.57KBDownload
